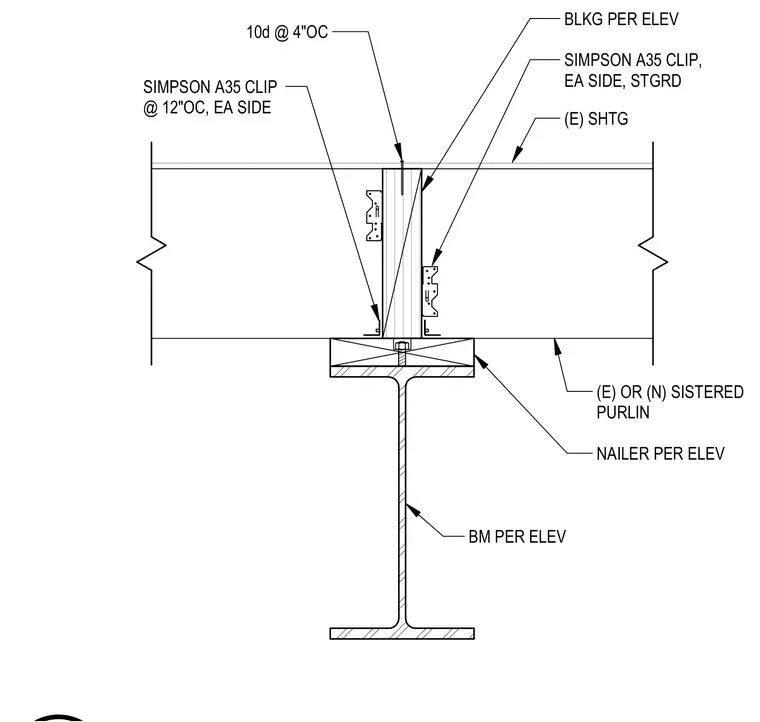

An existing or new sistered purlin beam supports framing with an underlying nailer per elevation. Blocking per elevation is tied to the assembly using staggered Simpson A35 clips on each side spaced at 12 inches on center. The sheathing above is fastened with 10d nails at 4 inches on center.
(E) OR (N) SISTERED PURLIN BM PER ELEV 10d @ 4"OC BLKG PER ELEV SIMPSON A35 CLIP @ 12"OC, EA SIDE SIMPSON A35 CLIP, EA SIDE, STGRD NAILER PER ELEV (E) SHTG
