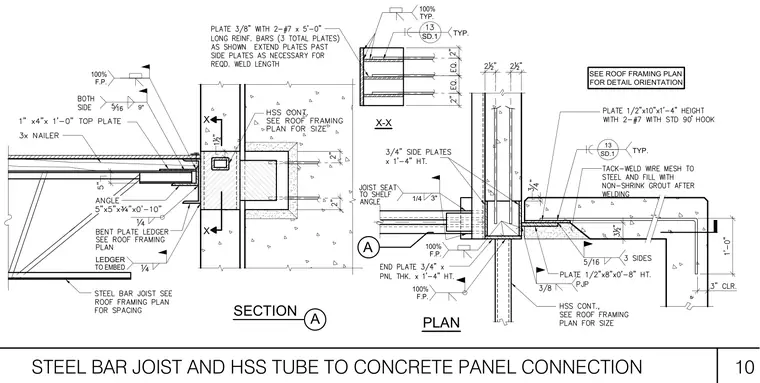

A steel bar joist bears on an angle shelf supported by a concrete panel connection assembly. A continuous hollow structural section tube framing member ties into the panel using embedded plates and reinforcing bars. Connection plates are welded with fillet and partial-joint-penetration welds as specified on the drawing.
STEEL BAR JOIST AND HSS TUBE TO CONCRETE PANEL CONNECTION TYP. SD.1 TYP. 13 SD.1 100% F.P. 100% F.P. A PLAN 1/4 3" X-X 100% TYP. LEDGER TO EMBED A SECTION X X 100% F.P. 9" SEE ROOF FRAMING PLAN FOR DETAIL ORIENTATION 10
