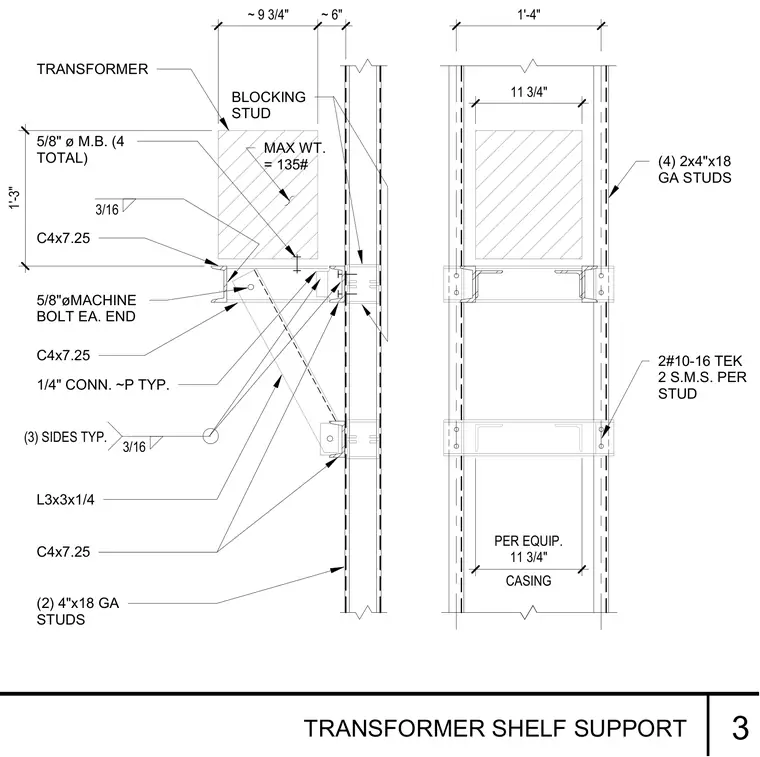

A structural steel shelf fabricated from C4x7.25 channels and an L3x3x1/4 angle brace transfers a maximum transformer weight of 135 pounds to a light-gauge steel stud wall. The shelf assembly is secured to the wall framing using four 5/8-inch diameter machine bolts with 1/4-inch connection plates. The transformer rests on blocking supported by the shelf and is enclosed in casing attached with number 10-16 TEK screws and sheet metal screws per stud. Fillet welds of 3/16-inch size connect the structural steel components on three sides typically.
CASING PER EQUIP. 11 3/4" 2#10-16 TEK 2 S.M.S. PER STUD 11 3/4" 1'-4" (2) 4"x18 GA STUDS C4x7.25 L3x3x1/4 3/16 (3) SIDES TYP. 1/4" CONN. ~P TYP. C4x7.25 C4x7.25 5/8"øMACHINE BOLT EA. END 3/16 5/8" ø M.B. (4 TOTAL) TRANSFORMER BLOCKING STUD MAX WT. = 135# 1'-3" (4) 2x4"x18 GA STUDS ~ 9 3/4" ~ 6" TRANSFORMER SHELF SUPPORT 3
