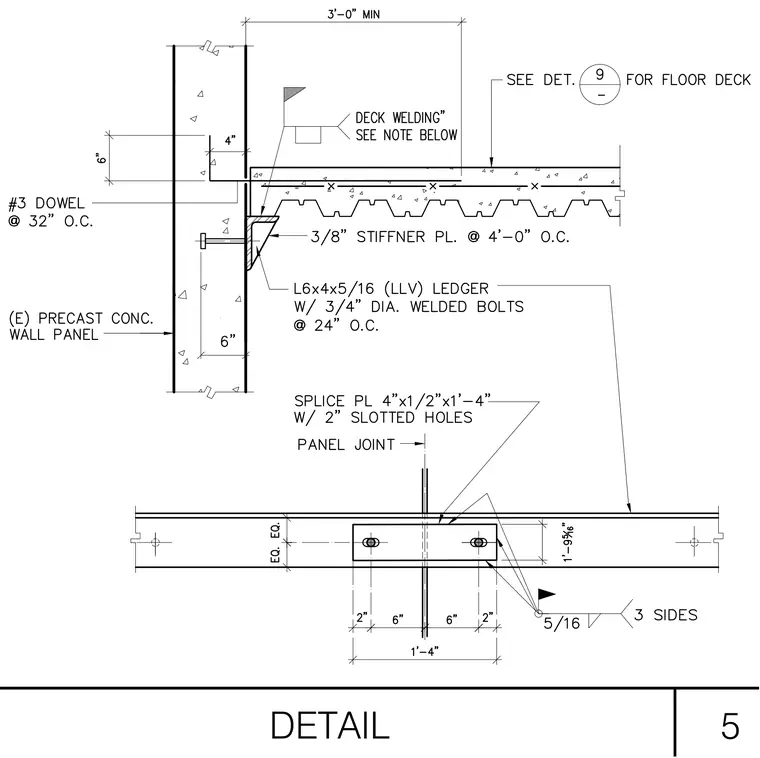

An L6x4x5/16 long leg vertical ledger angle supports a concrete floor deck against an existing precast concrete wall panel using three-quarter-inch diameter welded bolts spaced at twenty-four inches on center. A three-eighths-inch stiffener plate is welded to the ledger at four feet on center. A splice plate measuring four inches by one-half inch by one foot four inches bridges the panel joint with two-inch slotted holes and a five-sixteenths-inch fillet weld on three sides. Number three dowels are spaced at thirty-two inches on center into the wall panel.
