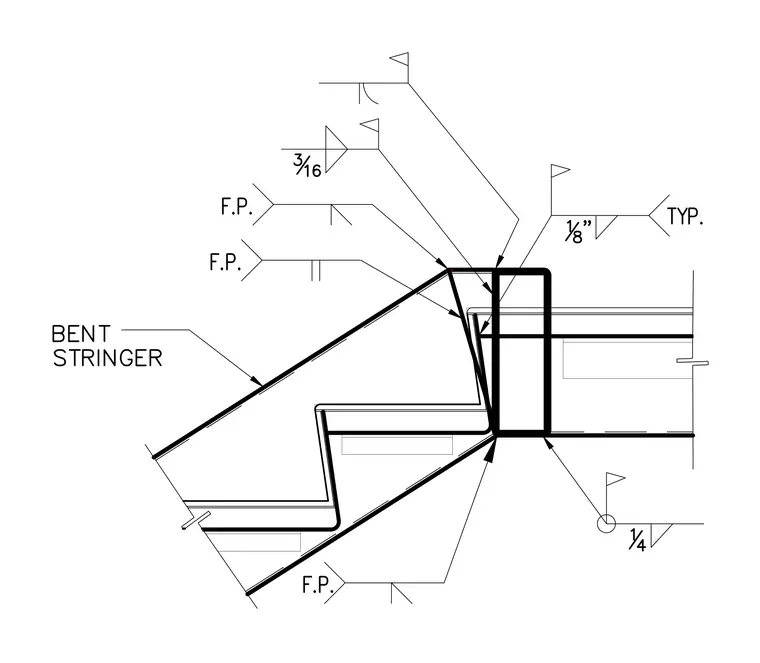

A bent stringer connects to a structural steel hollow section member using field welds. The assembly incorporates field-welded connections denoted by field weld symbols, including three-sixteenth-inch and one-quarter-inch fillet welds. Specific members are designated with field piece marks for erection. The stair stringer profile matches the folded plate geometry welded directly to the structural support frame.
