Structural · S-HKP6K

Elevator Rail Support at Steel Framing

Materials

Concrete Steel Metal (misc.)

Elements

Beams Floors / Slabs Decks Bracing Anchors / Embeds

Connections

HSS Connection Bracing Connection Bolted Connection Expansion / Slip Connection

About this detail

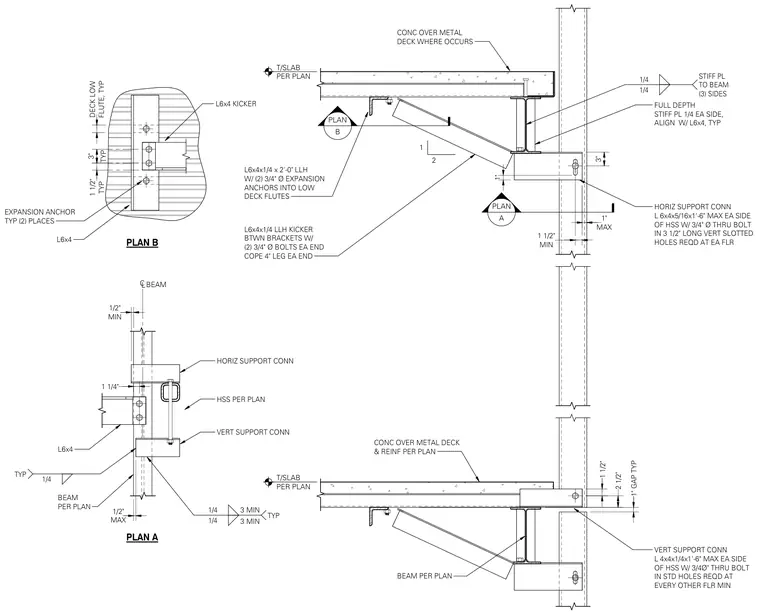

Elevator guide rail vertical and horizontal framing connections attach to a hollow structural section column and concrete slab over metal deck. The vertical support connection consists of an L 4x4x1/4 angle, one foot six inches maximum each side of the HSS column, secured with three-quarter-inch diameter through-bolts in standard holes required at every other floor minimum. Full depth quarter-inch stiffener plates align with the angle on three sides and are welded to the beam with quarter-inch fillets. The horizontal support connection features an L 6x4x5/16 angle, one foot six inches maximum each side of the HSS column, secured with three-quarter-inch diameter through-bolts in three-and-a-half-inch long vertical slotted holes required at each floor with a one-inch typical gap. An L 6x4x1/4 angle kicker is attached between brackets with two three-quarter-inch diameter bolts each end, with a four-inch leg cope at each end, anchored into low deck flutes with two three-quarter-inch diameter expansion anchors.
