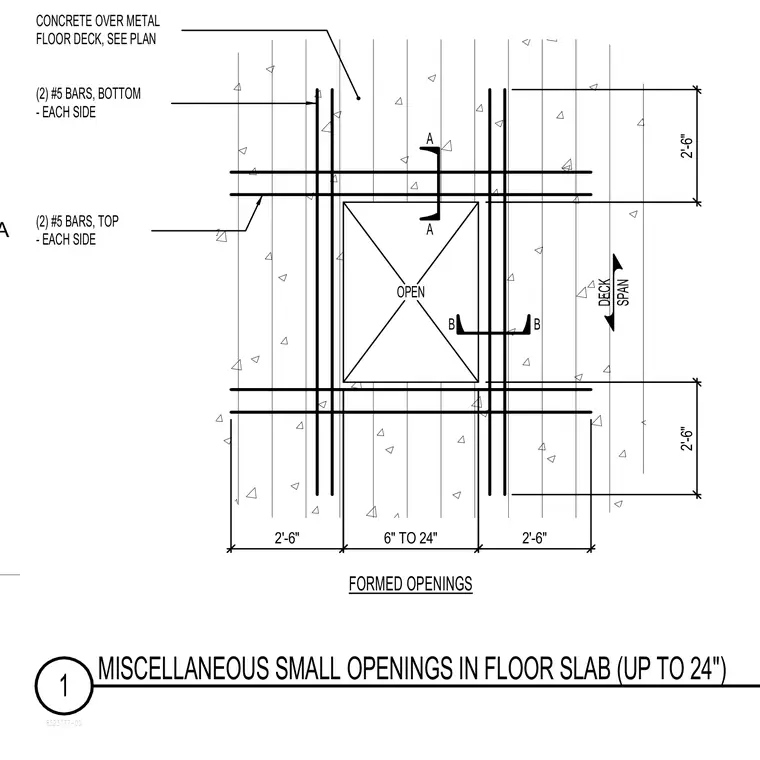

Reinforcement layout for miscellaneous small floor slab openings ranging from 6 inches to 24 inches in width. The assembly consists of concrete placed over a metal floor deck, sized per plan. Two number 5 reinforcing bars are placed at the top on each side of the opening, and two number 5 reinforcing bars are placed at the bottom on each side. The bars extend two feet six inches beyond the edges of the opening.
DECK SPAN 8523777-00 1 MISCELLANEOUS SMALL OPENINGS IN FLOOR SLAB (UP TO 24") OPEN (2) #5 BARS, BOTTOM (2) #5 BARS, TOP FORMED OPENINGS CONCRETE OVER METAL FLOOR DECK, SEE PLAN - EACH SIDE - EACH SIDE B B A A 2'-6" 6" TO 24" 2'-6" 2'-6" 2'-6" A
