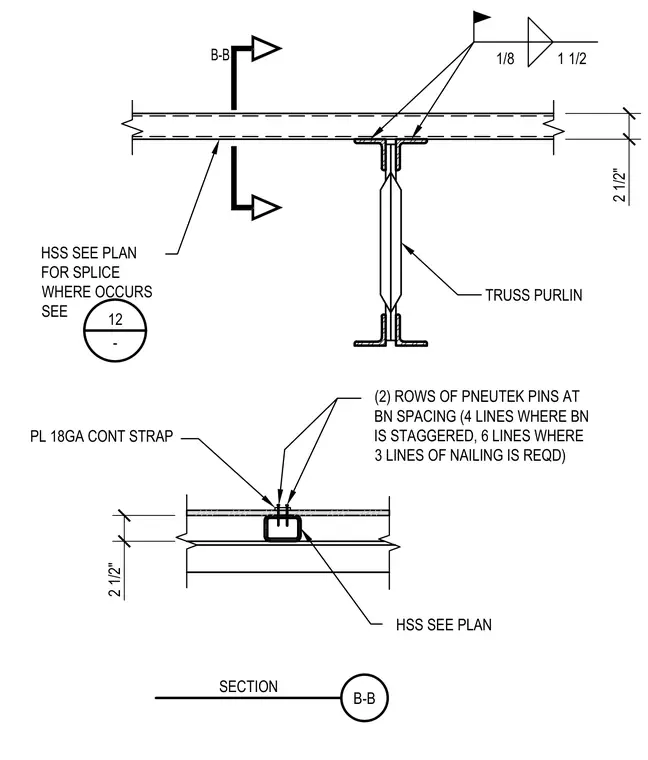

A hollow structural section bears on a truss purlin with a one-eighth-inch weld connection. An eighteen-gauge continuous plate strap is fastened using two rows of Pneutek pins spaced per beam nailing requirements, staggered into four or six lines where required. A separate hollow structural section is sized per plan with splices located as indicated.
2 1/2" TRUSS PURLIN B-B 1/8 1 1/2 HSS SEE PLAN FOR SPLICE WHERE OCCURS SEE 12 - 2 1/2" HSS SEE PLAN PL 18GA CONT STRAP B-B SECTION (2) ROWS OF PNEUTEK PINS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD)
