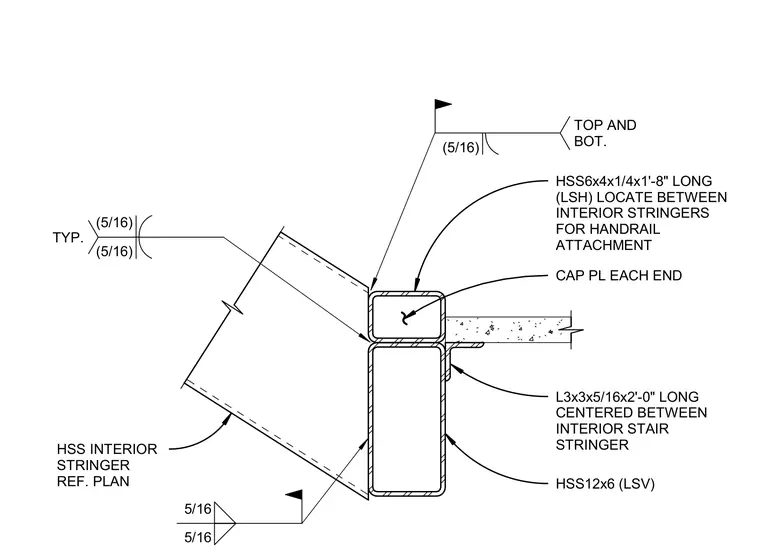

An angle L3x3x5/16 by two feet zero inches long is centered between the interior stair stringer and welded to the HSS12x6 structural steel member. An HSS6x4x1/4 by one foot eight inches long structural section is located between the interior stringers for handrail attachment with cap plates at each end. Five-sixteenths-inch fillet welds secure the stair stringer to the HSS member at the top and bottom with typical welding symbols specified throughout.
L3x3x5/16x2'-0" LONG CENTERED BETWEEN INTERIOR STAIR STRINGER HSS12x6 (LSV) (5/16) TOP AND BOT. (5/16) (5/16) TYP. 5/16 5/16 HSS INTERIOR STRINGER REF. PLAN CAP PL EACH END HSS6x4x1/4x1'-8" LONG (LSH) LOCATE BETWEEN INTERIOR STRINGERS FOR HANDRAIL ATTACHMENT
