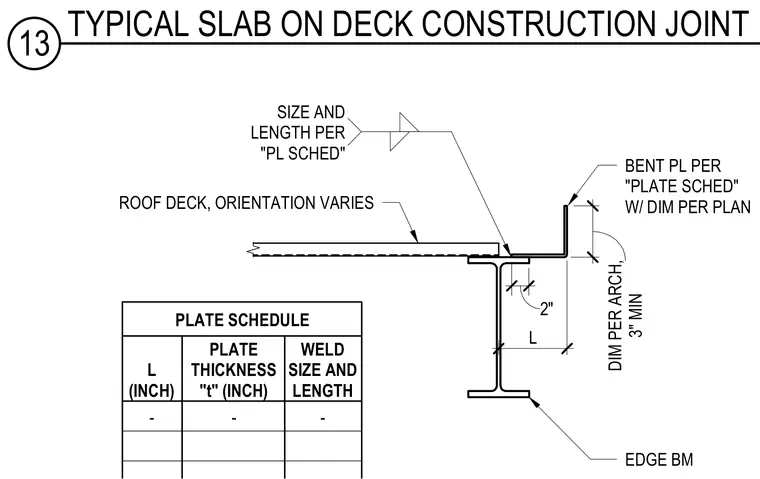

Roof deck with variable orientation bears on an edge steel beam with a bent plate detailed per the plate schedule and dimensioned per plan. A minimum two-inch dimension and three-inch minimum dimension govern the placement and edge clearances. Weld size and length are specified by the plate schedule.
SIZE AND LENGTH PER "PL SCHED" ROOF DECK, ORIENTATION VARIES BENT PL PER "PLATE SCHED" W/ DIM PER PLAN EDGE BM PLATE SCHEDULE L (INCH) PLATE THICKNESS "t" (INCH) 2" 6" - - 8" L DIM PER ARCH, 3" MIN WELD SIZE AND LENGTH - 13 TYPICAL SLAB ON DECK CONSTRUCTION JOINT
