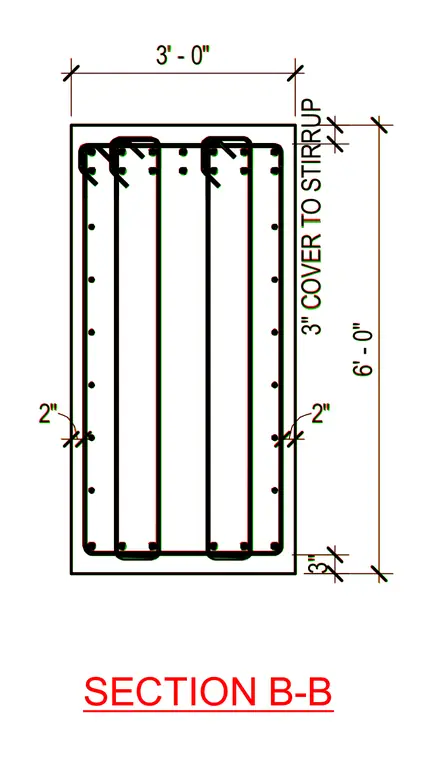

A rectangular concrete structural member section is reinforced with longitudinal rebar and closed stirrups maintaining a three-inch cover. The cross section measures three feet by six feet with dimensions indicating clear cover distances and stirrup placement.
3' - 0" 6' - 0" 2" 2" 3" COVER TO STIRRUP 3" SECTION B-B 3' - 0" 6' - 0" 2" 2" 3" COVER TO STIRRUP 3"
