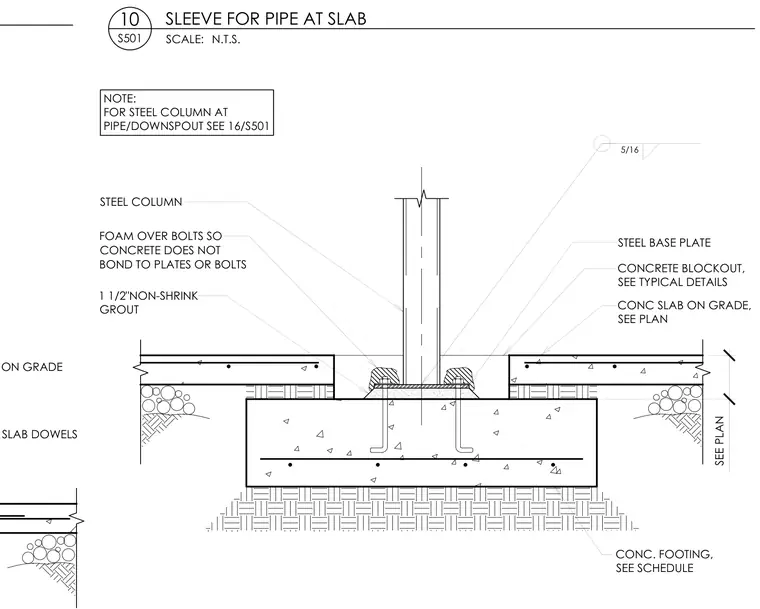

A steel column bears on a steel base plate anchored to a concrete footing with anchor bolts embedded in the concrete. A layer of foam is placed over the bolts so the concrete does not bond to the plates or bolts. The assembly sits within a concrete blockout surrounded by a concrete slab on grade, with one and one-half inches of non-shrink grout beneath the base plate.
SCALE: 10 SLEEVE FOR PIPE AT SLAB S501 N.T.S. CONCRETE BLOCKOUT, SEE TYPICAL DETAILS STEEL BASE PLATE STEEL COLUMN 1 1/2"NON-SHRINK GROUT CONC. FOOTING, SEE SCHEDULE CONC SLAB ON GRADE, SEE PLAN NOTE: FOR STEEL COLUMN AT PIPE/DOWNSPOUT SEE 16/S501 SEE PLAN 5/16 FOAM OVER BOLTS SO CONCRETE DOES NOT BOND TO PLATES OR BOLTS CONC. SLAB ON GRADE #4 x 24" x 24" SLAB DOWELS
