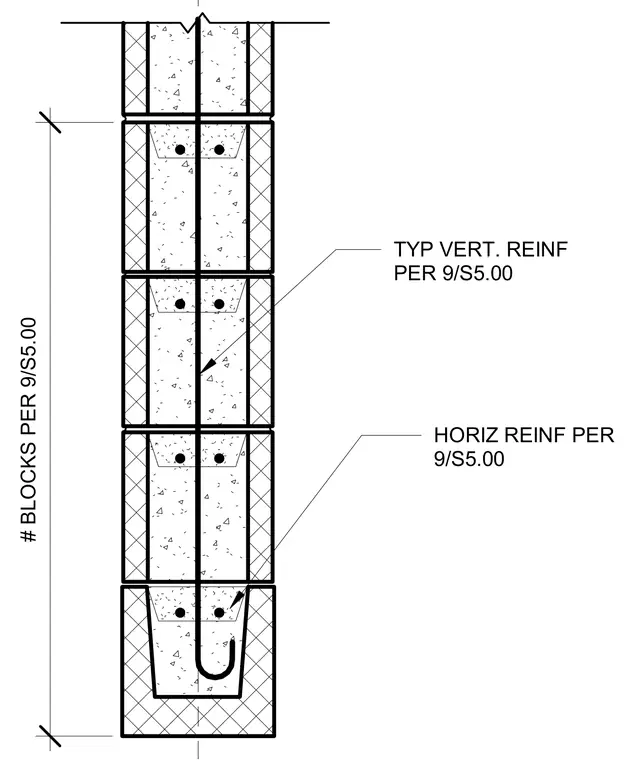

This structural detail shows a reinforced concrete masonry unit lintel assembly with vertical reinforcing bars and horizontal reinforcing bars placed within grouted core cells. The masonry units are stacked vertically according to the specified count per schedule, with horizontal bond beam courses at the lintel base. Vertical reinforcement runs continuously through the grouted cores while horizontal reinforcement is positioned in the bond beam channel.
# BLOCKS PER 9/S5.00 TYP VERT. REINF PER 9/S5.00 HORIZ REINF PER 9/S5.00
