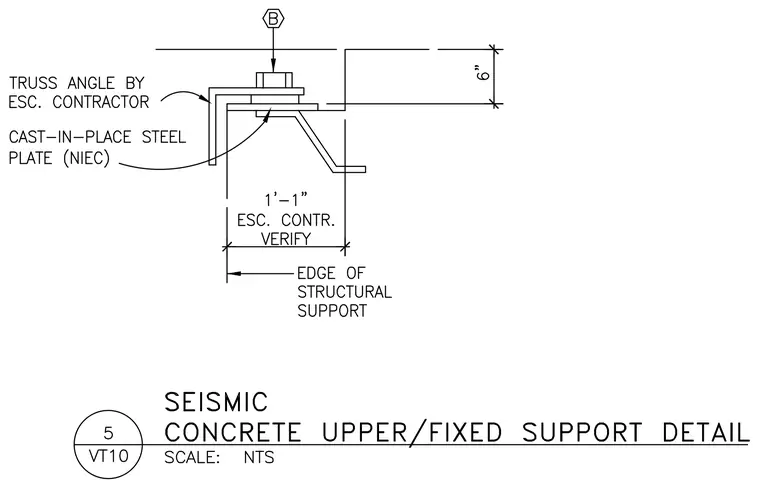

A truss angle provided by the escalator contractor connects to a cast-in-place steel plate with an overhead anchor bolt designated by bubble B. The assembly maintains a six-inch vertical dimension from the top of the structural support and spans one foot one inch across the edge of the structural support, subject to verification by the escalator contractor.
