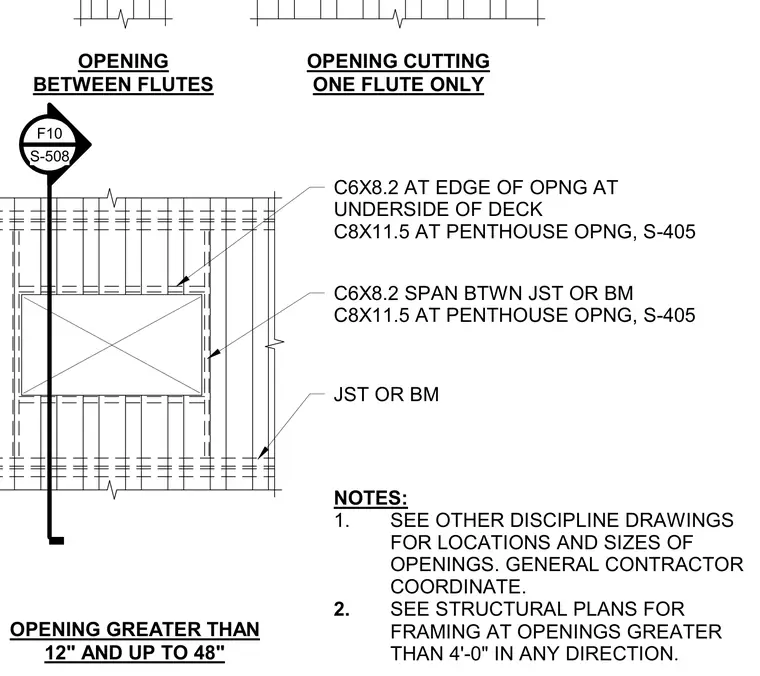

Structural channel framing is configured to support metal deck openings between 12 inches and 48 inches in size. A C6x8.2 channel frames the edge of the opening at the underside of the deck, while a C8x11.5 channel is utilized at penthouse openings. Additional C6x8.2 channels span between joists or beams as required by the layout. The general contractor is directed to coordinate with other discipline drawings for exact locations and sizes, and to refer to structural plans for openings exceeding 4 feet in any direction.
OPENING BETWEEN FLUTES OPENING CUTTING ONE FLUTE ONLY OPENING GREATER THAN 12" AND UP TO 48" NOTES: 1. SEE OTHER DISCIPLINE DRAWINGS FOR LOCATIONS AND SIZES OF OPENINGS. GENERAL CONTRACTOR COORDINATE. 2. SEE STRUCTURAL PLANS FOR FRAMING AT OPENINGS GREATER THAN 4'-0" IN ANY DIRECTION. JST OR BM C6X8.2 SPAN BTWN JST OR BM C8X11.5 AT PENTHOUSE OPNG, S-405 C6X8.2 AT EDGE OF OPNG AT UNDERSIDE OF DECK C8X11.5 AT PENTHOUSE OPNG, S-405 F10 S-508
