Exterior Foundation Footing and Dock Leveler Wall Detail

Materials

Concrete Steel Timber / Wood Glass / Glazing

Elements

Ramps Floors / Slabs Foundations / Footings Arches Site / Paving Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

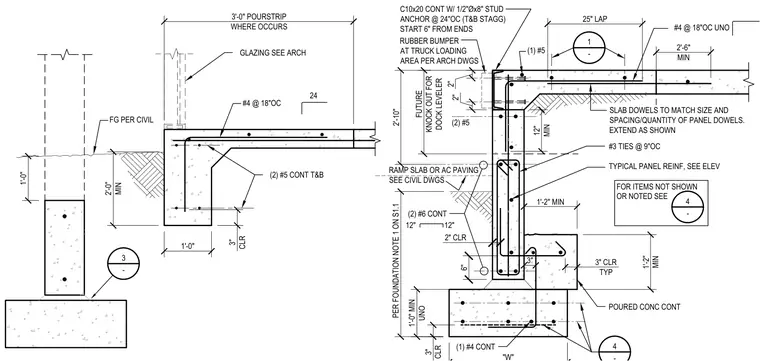

A reinforced concrete exterior footing supports a concrete wall featuring a future knock-out for a dock leveler. The wall includes a continuous C10x20 steel channel anchored with half-inch diameter by eight-inch stud anchors spaced at twenty-four inches on center, staggered top and bottom, to accommodate a rubber bumper. Vertical and horizontal reinforcement consists of number five and number six continuous bars with number three ties at nine inches on center, tied into slab dowels matching panel reinforcement sizing. The footing rests on a poured concrete continuous base with three-inch concrete clear cover, incorporating bottom continuous number four bars and a twenty-five inch lap splice. A separate exterior footing portion includes a three-foot pour strip, glazing per architectural drawings, and number four reinforcing bars at eighteen inches on center.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
