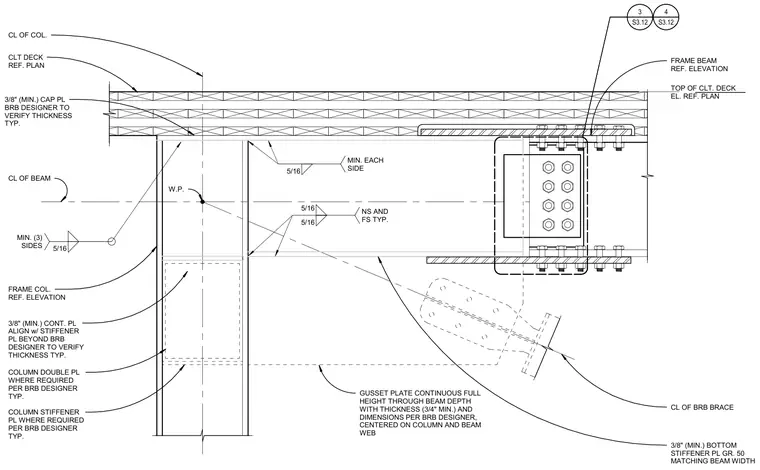

A continuous full-height gusset plate passes through the beam depth, centered on the column and beam web, with a thickness of three-quarters of an inch minimum and dimensions determined by the buckling-restrained brace designer. A three-eighths-inch minimum cap plate and a matching width bottom stiffener plate in Grade 50 steel connect the frame beam to the assembly, with thicknesses verified by the brace designer. A three-eighths-inch minimum continuous plate aligns with the stiffener plate beyond, while column stiffener plates and double plates are provided where required by the brace designer. Five-sixteenths-inch fillet welds are specified on three sides and on both the near side and far side typically across the connection elements.
CL OF BEAM CL OF COL. FRAME COL. REF. ELEVATION W.P. CLT DECK REF. PLAN FRAME BEAM REF. ELEVATION TOP OF CLT. DECK EL. REF. PLAN GUSSET PLATE CONTINUOUS FULL HEIGHT THROUGH BEAM DEPTH WITH THICKNESS (3/4" MIN.) AND DIMENSIONS PER BRB DESIGNER, CENTERED ON COLUMN AND BEAM WEB CL OF BRB BRACE 3/8" (MIN.) CAP PL BRB DESIGNER TO VERIFY THICKNESS TYP. 5/16 MIN. (3) SIDES 5/16 MIN. EACH SIDE 5/16 5/16 NS AND FS TYP. 3/8" (MIN.) CONT. PL ALIGN w/ STIFFENER PL BEYOND BRB DESIGNER TO VERIFY THICKNESS TYP. COLUMN STIFFENER PL WHERE REQUIRED PER BRB DESIGNER TYP. COLUMN DOUBLE PL WHERE REQUIRED PER BRB DESIGNER TYP. _____ S3.12 4 _____ S3.12 3 3/8" (MIN.) BOTTOM STIFFENER PL GR. 50 MATCHING BEAM WIDTH
