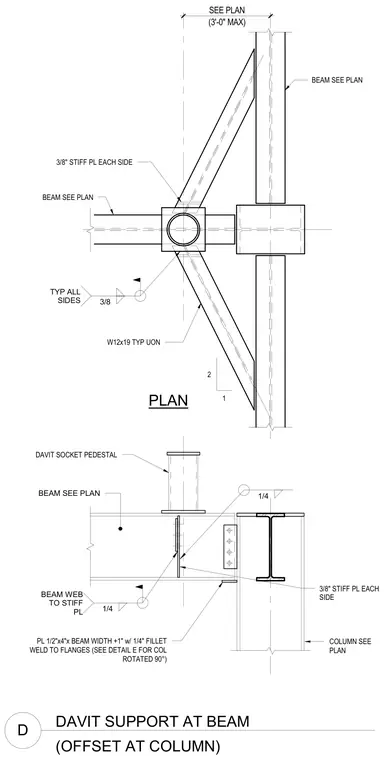

A davit support pedestal is mounted to a steel beam framing into a column. The assembly features a davit socket pedestal welded to the top flange of a W12x19 beam. Three-eighths-inch stiffener plates are welded to each side of the beam web and flanges with fillet welds. A one-half-inch by four-inch plate connects the beam to the column flange, secured with a quarter-inch fillet weld.
(OFFSET AT COLUMN) DAVIT SUPPORT AT BEAM D PLAN PL 1/2"x4"x BEAM WIDTH +1" w/ 1/4" FILLET WELD TO FLANGES (SEE DETAIL E FOR COL ROTATED 90°) BEAM SEE PLAN DAVIT SOCKET PEDESTAL 3/8" STIFF PL EACH SIDE COLUMN SEE PLAN W12x19 TYP UON BEAM SEE PLAN 3/8" STIFF PL EACH SIDE 2 1 BEAM SEE PLAN 1/4 1/4 BEAM WEB TO STIFF PL (3'-0" MAX) SEE PLAN 3/8 TYP ALL SIDES
