Structural · S-HJSWZ

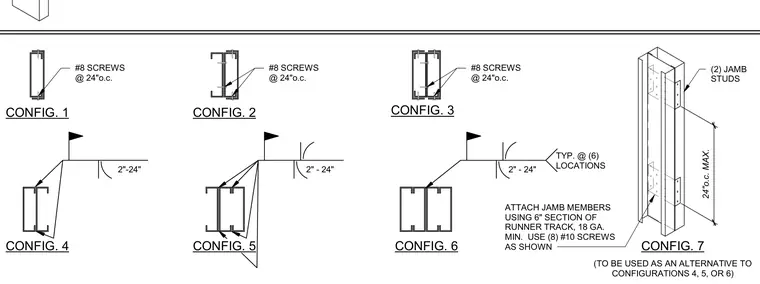

Cold-Formed Steel Jamb Stud Configuration 7

About this detail

Configuration 7 serves as an alternative to configurations 4, 5, or 6 for cold-formed steel framing. The assembly consists of two jamb studs connected using a six-inch section of minimum 18-gauge runner track. Each connection is secured using eight number 10 screws as shown, spaced at a maximum of 24 inches on center.
