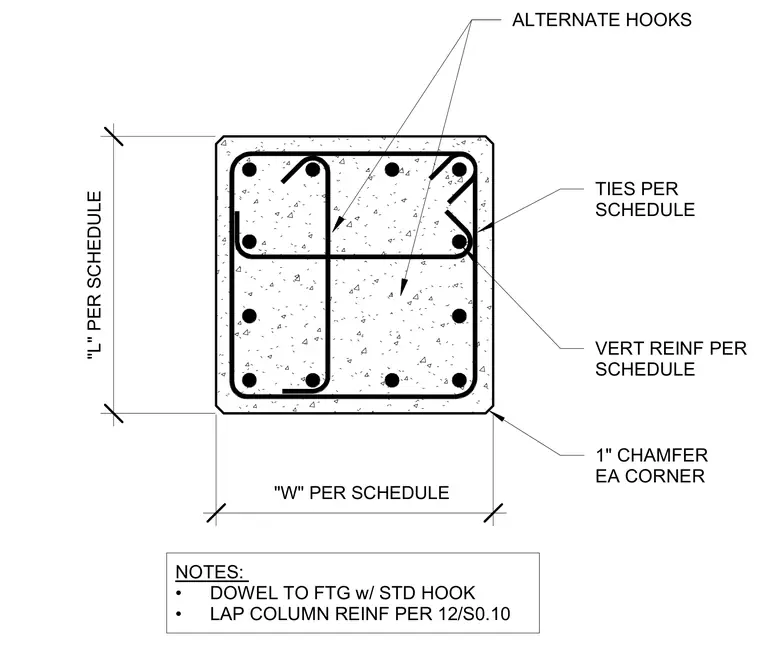

A reinforced concrete column profile details the arrangement of vertical reinforcing bars and lateral ties sized per schedule. Alternate hook configurations secure the interior ties within the concrete core. Each corner features a one-inch chamfer. Standard hooks anchor the dowels to the footing, and column reinforcement is lapped per structural specifications.
"L" PER SCHEDULE "W" PER SCHEDULE TIES PER SCHEDULE VERT REINF PER SCHEDULE 1" CHAMFER EA CORNER ALTERNATE HOOKS NOTES: • DOWEL TO FTG w/ STD HOOK • LAP COLUMN REINF PER 12/S0.10
