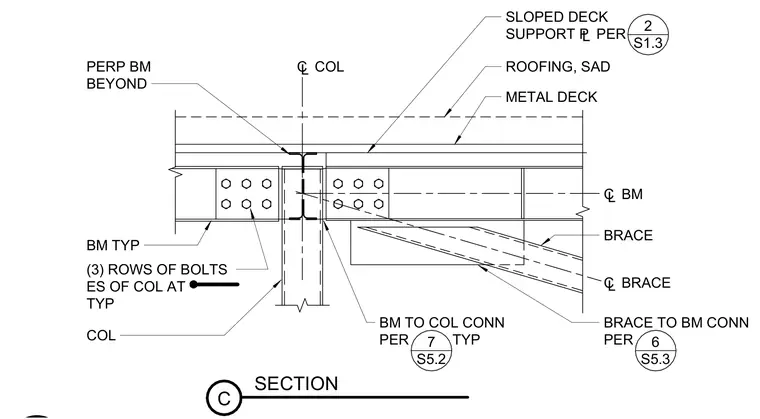

The assembly connects typical steel beams and a structural brace to a steel column beneath a metal deck roof with sloped deck support plates. The framing utilizes three rows of bolts at each side of the column for typical beam connections. A perpendicular beam is shown beyond the column centerline. Additional connections refer to detail callouts for beam-to-column and brace-to-beam junctions.
(3) ROWS OF BOLTS ES OF COL AT TYP BM TYP ¢ COL ¢ BM ¢ BRACE BRACE METAL DECK ROOFING, SAD SLOPED DECK SUPPORT £ PER 2 S1.3 PERP BM BEYOND COL BM TO COL CONN PER TYP 7 S5.2 SECTION C BRACE TO BM CONN PER 6 S5.3
