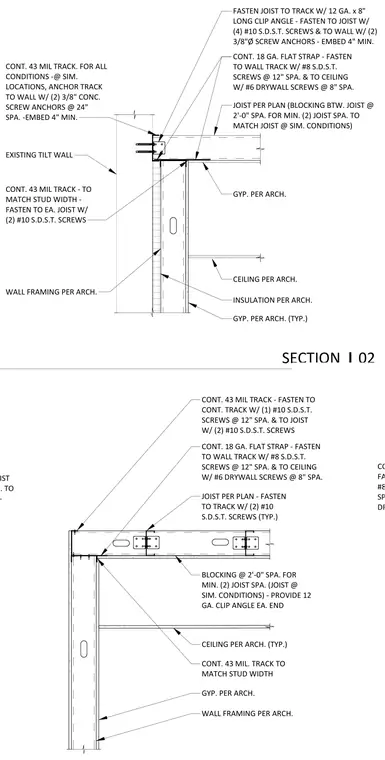

This assembly connects a cold-formed steel joist to an existing tilt-up concrete wall using a 12-gauge by 8-inch long clip angle. The clip angle is fastened to the joist with four number 10 self-drilling self-tapping screws and anchored to the concrete wall with two 3/8-inch diameter screw anchors embedded at least 4 inches. A continuous 43-mil track is anchored to the concrete wall at 24-inch spacing with 3/8-inch screw anchors. The joist is further stabilized by a continuous 18-gauge flat strap fastened to the wall track with number 8 self-drilling self-tapping screws at 12-inch spacing and to the ceiling assembly with number 6 drywall screws at 8-inch spacing. Blocking is installed between joists at 2-foot spacing for a minimum of two joist spans.
Text on the drawing
JOIST PER PLAN (BLOCKING BTW. JOIST @ 2'-0" SPA. FOR MIN. (2) JOIST SPA. TO MATCH JOIST @ SIM. CONDITIONS) CONT. 18 GA. FLAT STRAP - FASTEN TO WALL TRACK W/ #8 S.D.S.T. SCREWS @ 12" SPA. & TO CEILING W/ #6 DRYWALL SCREWS @ 8" SPA. GYP. PER ARCH. FASTEN JOIST TO TRACK W/ 12 GA. x 8" LONG CLIP ANGLE - FASTEN TO JOIST W/ (4) #10 S.D.S.T. SCREWS & TO WALL W/ (2) 3/8"Ø SCREW ANCHORS - EMBED 4" MIN. CEILING PER ARCH. INSULATION PER ARCH. GYP. PER ARCH. (TYP.)
