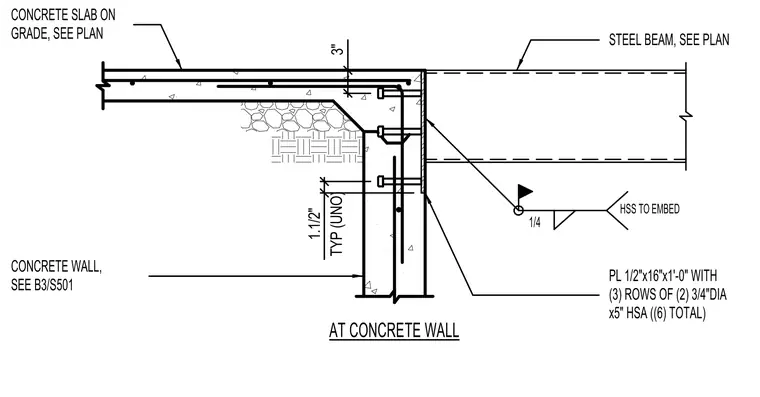

A steel beam framed into a concrete wall is anchored by a half-inch by sixteen-inch by one-foot-zero-inch embed plate secured with six three-quarter-inch diameter by five-inch headed stud anchors arranged in three rows of two. The hollow structural section or steel beam connects to the embed plate with a quarter-inch fillet weld. A concrete slab on grade bears adjacent to the wall connection as sized per plan.
AT CONCRETE WALL CONCRETE WALL, SEE B3/S501 CONCRETE SLAB ON GRADE, SEE PLAN STEEL BEAM, SEE PLAN 1/4 HSS TO EMBED PL 1/2"x16"x1'-0" WITH (3) ROWS OF (2) 3/4"DIA x5" HSA ((6) TOTAL) 3" 1.1/2" TYP (UNO)
