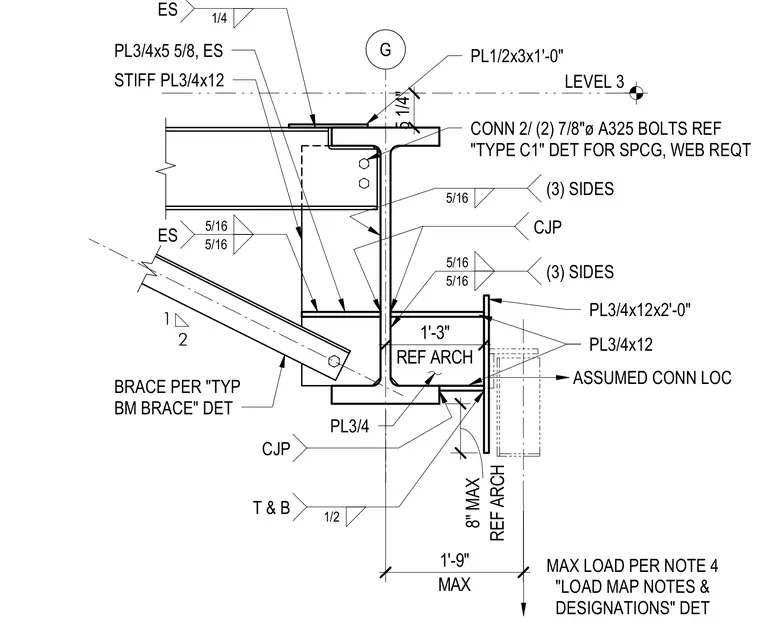

A steel framing connection at Level 3 incorporates an intersecting diagonal brace. The supported structural member connects using two 7/8-inch-diameter A325 bolts conforming to the Type C1 detail spacing and web requirements, alongside a 1/2-inch-thick connection plate measuring 3 inches by 1'-0". A diagonal brace framed per the typical beam brace detail ties into the assembly via 3/4-inch gusset and stiffener plates. Complete joint penetration welds and 5/16-inch fillet welds secure the plates on each side as indicated. Additional 3/4-inch plates reinforce the web and flange junctions, maintaining clearances and load paths per the structural notes.
G REF ARCH 8" MAX CJP (3) SIDES 5/16 5/16 T & B 1/2 ES 5/16 5/16 MAX LOAD PER NOTE 4 "LOAD MAP NOTES & DESIGNATIONS" DET ASSUMED CONN LOC REF ARCH 1'-3" CJP (3) SIDES 5/16 ES 1/4 PL1/2x3x1'-0" CONN 2/ (2) 7/8"ø A325 BOLTS REF "TYPE C1" DET FOR SPCG, WEB REQT STIFF PL3/4x12 PL3/4x5 5/8, ES 1 2 BRACE PER "TYP BM BRACE" DET PL3/4x12 PL3/4x12x2'-0" PL3/4 MAX 1'-9" LEVEL 3 5 1/4"
