A reinforced concrete beam supports a slab on grade with sizing per plan and schedule, incorporating top and bottom primary bars alongside top and bottom added bars. Stirrups enclose the main longitudinal reinforcement, supplemented by number five bars each face when the section depth exceeds thirty inches. Number four dowels spaced at sixteen inches on center with one foot eight inches of embedment tie into the grade beam. The adjacent slab on grade connects directly to the beam top.

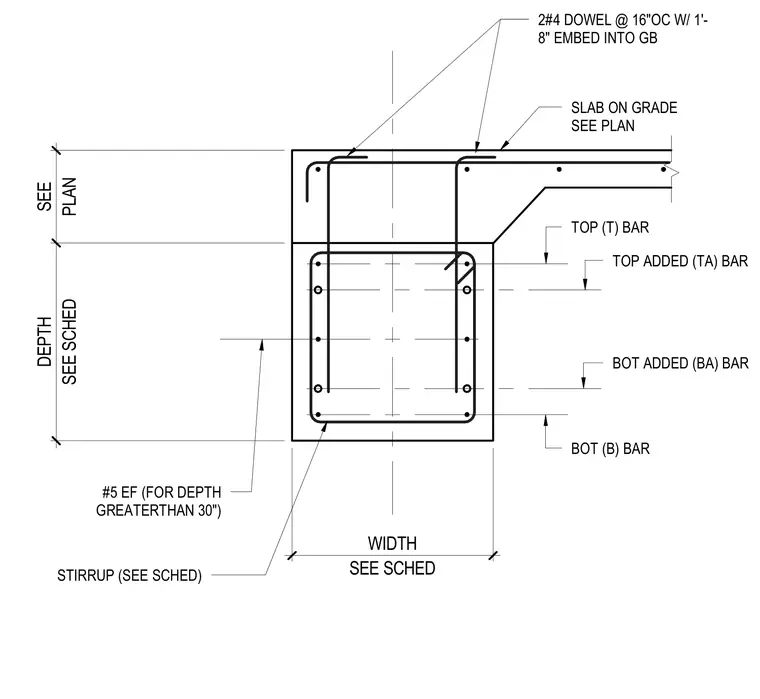

STIRRUP (SEE SCHED) TOP (T) BAR BOT (B) BAR TOP ADDED (TA) BAR BOT ADDED (BA) BAR #5 EF (FOR DEPTH GREATERTHAN 30") SLAB ON GRADE SEE PLAN SEE SCHED WIDTH SEE SCHED DEPTH PLAN SEE 2#4 DOWEL @ 16"OC W/ 1'- 8" EMBED INTO GB
