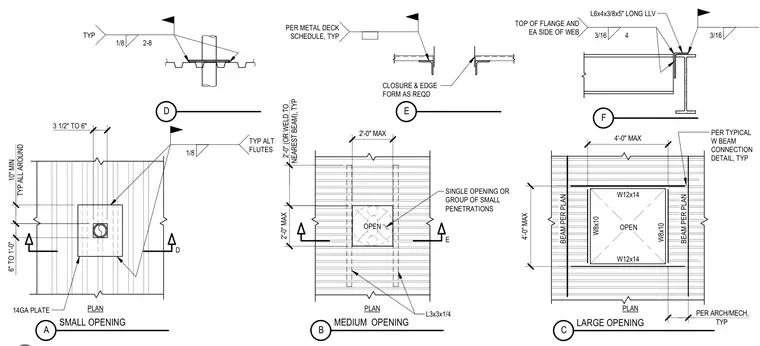

Small openings up to six inches to one foot feature a fourteen gauge reinforcement plate spanning alternate flutes with a one-eighth inch fillet weld all around. Medium openings up to two feet maximum are framed with L3x3x1/4 angles welded to alternate flutes or the nearest beam, accompanied by closure and edge forms as required. Large openings up to four feet maximum utilize W8x10 and W12x14 framing members supported by structural angles connected to the top flange and each side of the web with three-sixteenths inch fillet welds.
D SMALL OPENING A LARGE OPENING C 1/8 2-8 TYP E PER METAL DECK SCHEDULE, TYP CLOSURE & EDGE FORM AS REQD F 3/16 4 TOP OF FLANGE AND EA SIDE OF WEB L6x4x3/8x5" LONG LLV 3/16 D PLAN 14GA PLATE TYP ALL AROUND 10" MIN 6" TO 1'-0" 3 1/2" TO 6" 1/8 TYP ALT FLUTES E PLAN MEDIUM OPENING B L3x3x1/4 2'-0" MAX NEAREST BEAM), TYP 2'-0" (OR WELD TO 2'-0" MAX SINGLE OPENING OR GROUP OF SMALL PENETRATIONS OPEN PLAN W12x14 OPEN W12x14 W8x10 W8x10 BEAM PER PLAN BEAM PER PLAN 4'-0" MAX PER TYPICAL W BEAM CONNECTION DETAIL, TYP 4'-0" MAX TYP PER ARCH/MECH,
