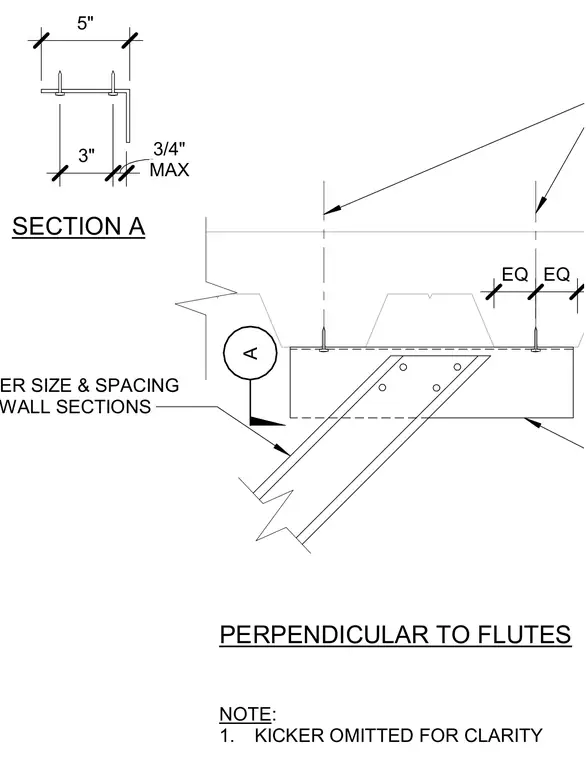

A structural wall kicker brace connection oriented perpendicular to metal deck flutes. The kicker member size and spacing are sized per the wall sections. Dimensions indicate a 5-inch spacing with 3 inches and a maximum 3/4-inch offset. A note specifies that the kicker is omitted for clarity.
A EQ EQ KICKER SIZE & SPACING SEE WALL SECTIONS 5" 3" MAX 3/4" NOTE: 1. KICKER OMITTED FOR CLARITY PERPENDICULAR TO FLUTES SECTION A
