Metal deck panels bear on structural steel beams sized per plan, with end and intermediate supports welded per schedule. A splice joint connects deck sections running in the same direction, requiring a two inch minimum lap when supporting beam flanges are less than two inches in width. For a change in deck direction, longitudinal supports are welded per schedule adjacent to the profile transition.

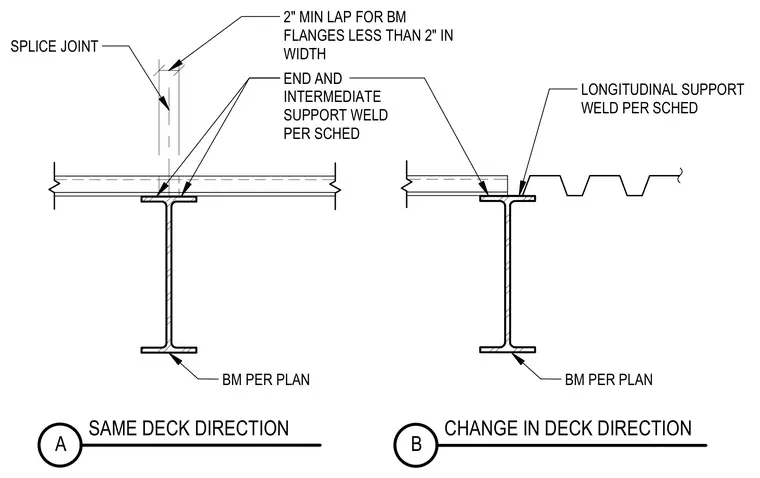

LONGITUDINAL SUPPORT WELD PER SCHED BM PER PLAN 2" MIN LAP FOR BM FLANGES LESS THAN 2" IN WIDTH END AND INTERMEDIATE SUPPORT WELD PER SCHED SPLICE JOINT BM PER PLAN SAME DECK DIRECTION A CHANGE IN DECK DIRECTION B
