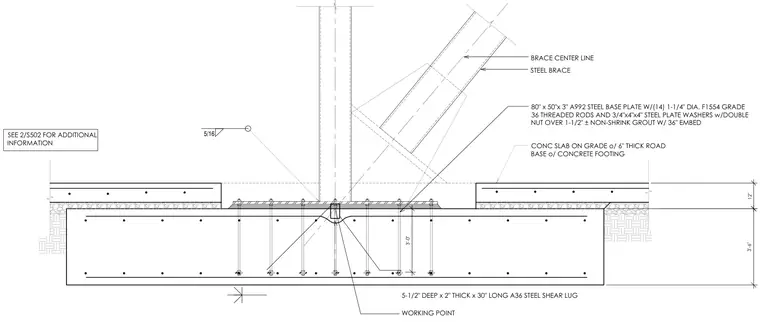

A structural steel brace frame connects to a concrete foundation via an 80 inches by 50 inches by 3 inches A992 steel base plate secured with fourteen 1-1/4 inch diameter F1554 Grade 36 threaded rods and 3/4 inch by 4 inches by 4 inches steel plate washers with double nuts over 1-1/2 inches of non-shrink grout with 36 inches of embedment. A shear lug measuring 5-1/2 inches deep by 2 inches thick by 30 inches long, fabricated from A36 steel, is welded to the underside of the base plate with a 5/16 inch fillet weld and embedded into the concrete footing. The assembly bears on a concrete footing beneath a concrete slab on grade over 6 inches of thick road base.
80" x 50"x 3" A992 STEEL BASE PLATE W/(14) 1-1/4" DIA. F1554 GRADE 36 THREADED RODS AND 3/4"x4"x4" STEEL PLATE WASHERS w/DOUBLE 18729(51216+5,1.*5287:(0%(' BRACE CENTER LINE STEEL BRACE WORKING POINT 12" 3'-0" 5-1/2" DEEP x 2" THICK x 30" LONG A36 STEEL SHEAR LUG SEE 2/S502 FOR ADDITIONAL INFORMATION 3'-6" CONC SLAB ON GRADE o/ 6" THICK ROAD BASE o/ CONCRETE FOOTING
