Structural · S-HHDHB

Beam Web Penetration and Stiffener Detail

Elements

Beams Floors / Slabs Connections / Plates Roof / Floor Openings

About this detail

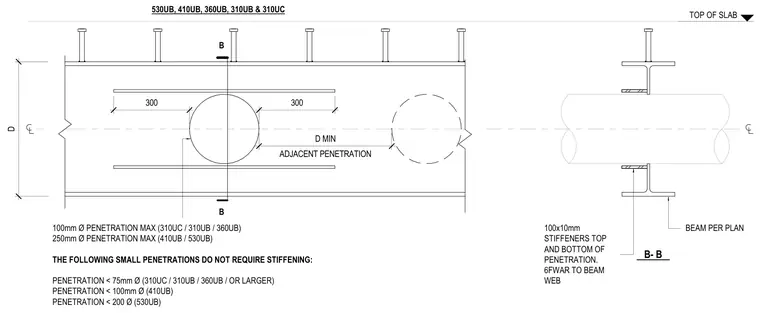

Web penetrations in steel beams, including universal beams and columns such as 310UC, 310UB, 360UB, 410UB, and 530UB sections. Penetrations up to specified diameters require 100x10mm stiffener plates welded to the top and bottom of the penetration with 6mm fillet welds to the beam web. Smaller unreinforced penetrations are permitted below specific diameter thresholds depending on the beam size. Minimum clear spacing between adjacent penetrations is indicated.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
