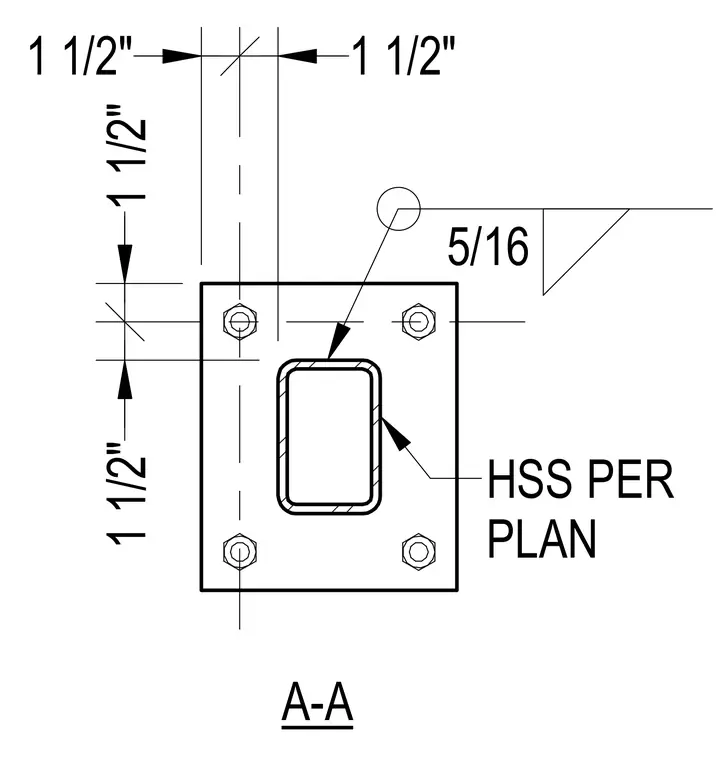

A hollow structural section column sized per plan connects to a square base plate secured by four anchor bolts arranged symmetrically around the profile. A five-sixteenth inch fillet weld joins the hollow structural section to the plate.
