Structural · S-HH24B

Cantilevered Beam Connection at Column

Materials

Concrete Metal (misc.)

Elements

Columns Beams Decks Bracing Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection

About this detail

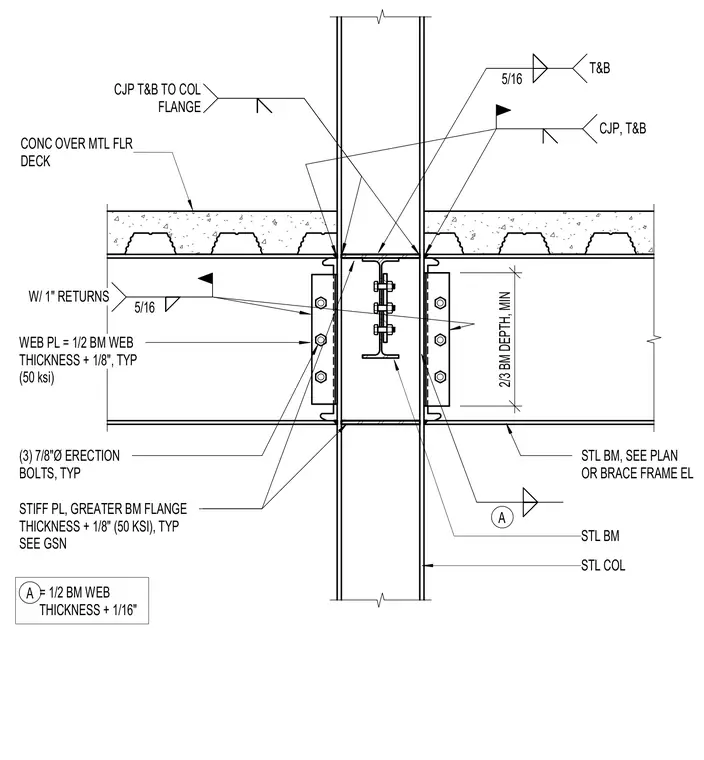

Steel beams frame into a structural steel column supporting a concrete floor slab over metal deck. The beam top and bottom flanges are welded directly to the column flange using complete joint penetration welds. Web plates sized at half the beam web thickness plus one-eighth inch and fifty kilopound per square inch yield strength are welded to the column with five-sixteenth inch fillets featuring one-inch returns and field-bolted with three seven-eighth inch diameter erection bolts. Column stiffener plates matching the beam flange thickness plus one-eighth inch are provided at the connection level. Concrete fill over metal floor deck bears across the top flanges of the framing members.
