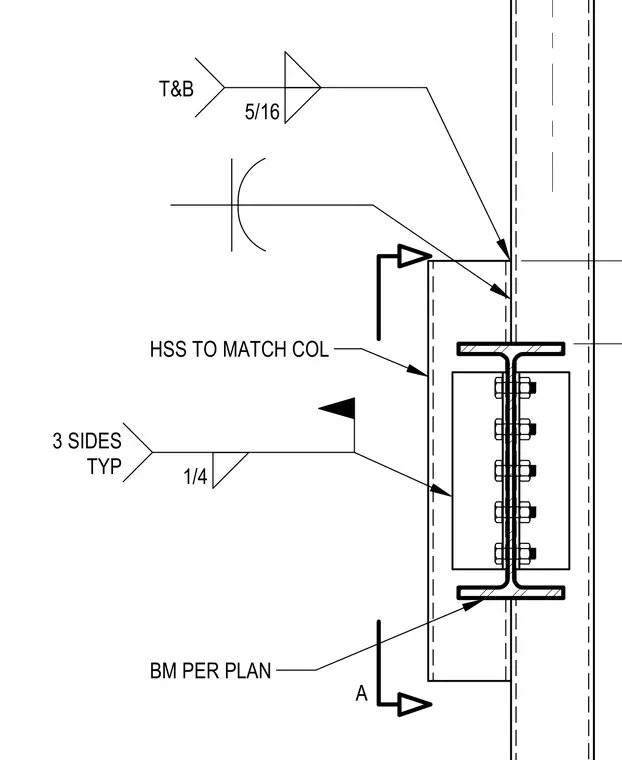

A hollow structural section window framing member matches the structural column size and connects to a steel beam sized per plan. The connection is secured with a five-bolt shear tab welded with a quarter-inch fillet weld typically on three sides. Top and bottom connections utilize five-sixteenth-inch welds to attach the hollow structural section to the column.
