Curtain Wall Connection at Structural Steel Column and Slab Edge

Materials

Elements

Columns Beams Walls Curtain Walls Floors / Slabs Decks Arches Connections / Plates

About this detail

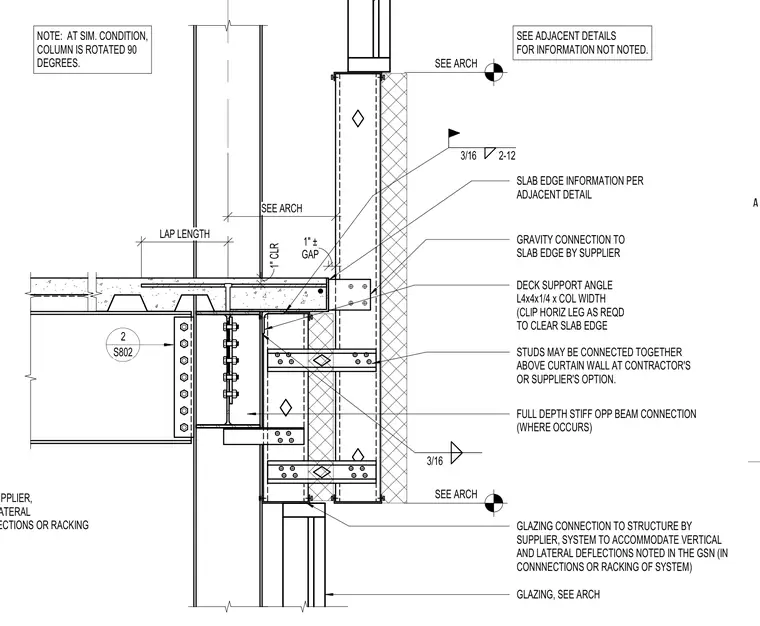

A curtain wall system connection frames into a structural steel column and concrete slab edge. A deck support angle measuring L4x4x1/4 is attached to the column width, with the horizontal leg clipped as required to clear the slab edge. A gravity connection to the slab edge is provided by the supplier with a one-inch plus-or-minus gap, while studs may be connected together above the curtain wall at the contractor or supplier's option. A full depth stiffener plate is provided opposite the beam connection where applicable. The glazing and curtain wall connections accommodate vertical and lateral deflections noted in the structural general notes, maintaining a one-inch clearance lap length.
