Column Base Plate and Foundation Footing Detail

Materials

Concrete Steel Masonry / CMU

Elements

Columns Beams Floors / Slabs Foundations / Footings Arches Waterproofing / Flashing Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Rebar Splice / Development

About this detail

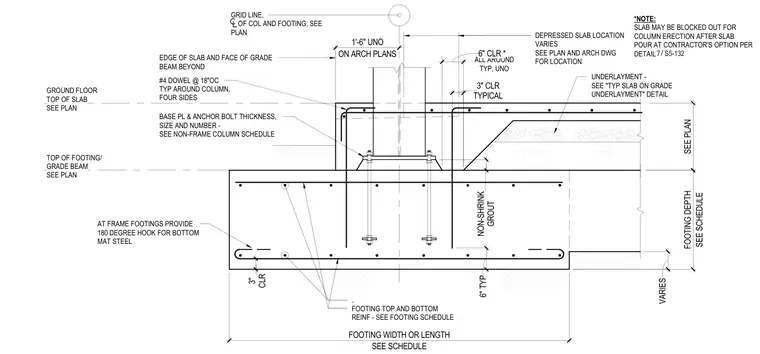

A column base plate and anchor bolt connection is mounted on a reinforced concrete footing and grade beam. The structural steel column bears on a non-shrink grout layer atop the concrete footing, secured with anchor bolts sized per the non-frame column schedule. Top and bottom reinforcing steel is provided within the footing, with number four dowels placed at eighteen inches on center typical around all four sides of the column. A depressed slab on grade with an underlying sub-base abuts the footing, allowing for optional slab block-out during column erection.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
