Typical Braced Frame Column and Anchorage

Materials

Concrete Steel Masonry / CMU

Elements

Columns Floors / Slabs Foundations / Footings Arches Bracing Anchors / Embeds

Connections

Braced Frame Connection Base Plate / Anchorage Bolted Connection

About this detail

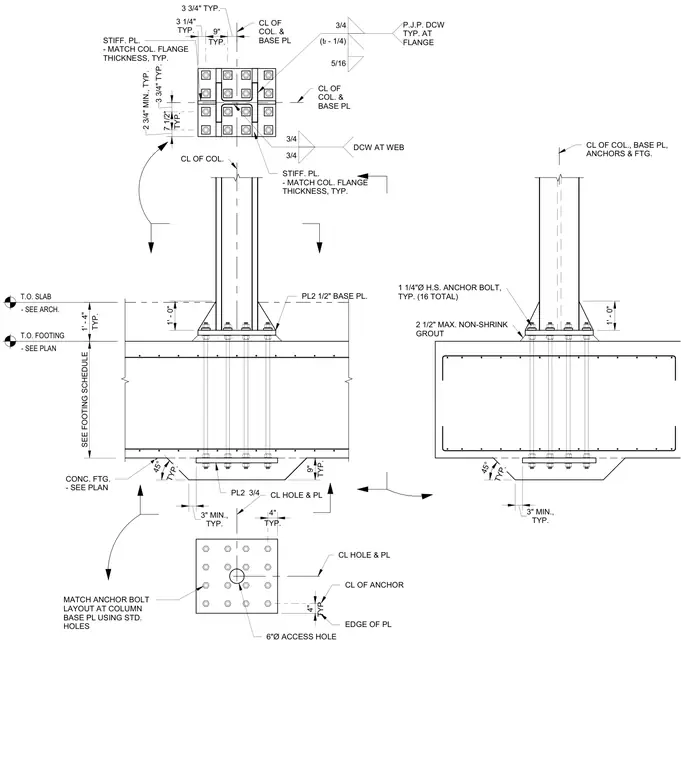

A heavy structural steel braced frame column base plate is anchored to a concrete footing with sixteen one-and-a-quarter-inch diameter high-strength anchor bolts. A two-and-a-half-inch maximum non-shrink grout pad sits beneath a two-and-a-half-inch thick base plate, which is reinforced with stiffener plates matching the column flange thickness. The column flanges and web are welded using three-quarter-inch partial joint penetration double-bevel welds and five-inch fillet welds. A six-inch diameter access hole is provided through the base plate matching the anchor bolt layout with standard holes. The concrete footing dimensions and top of footing elevations are coordinated per plan and structural schedules.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership

Similar details
