Structural · S-HGK86

Concrete Encasement Removal at Existing Steel Beam

Materials

Elements

About this detail

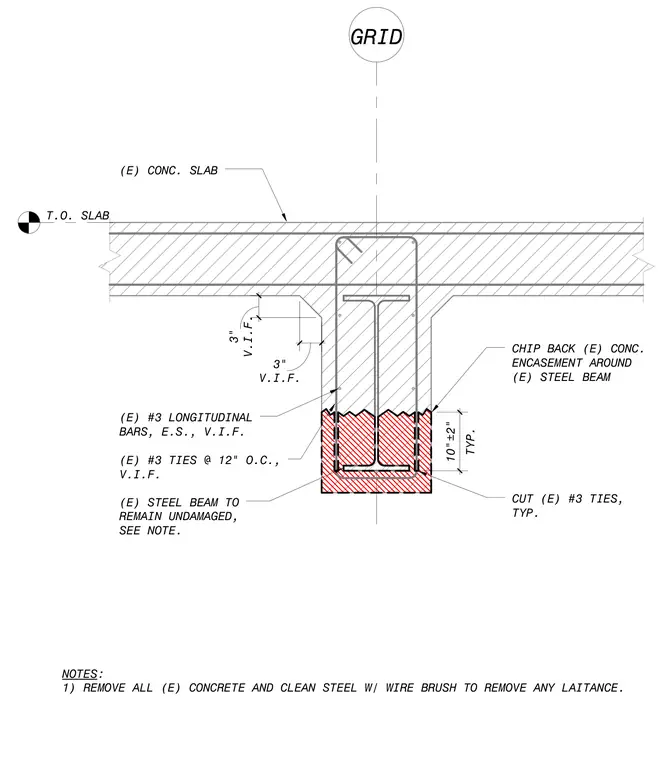

An existing steel beam supporting a concrete slab is partially encased in concrete with number 3 ties spaced at 12 inches on center and number 3 longitudinal bars on each side, verified in field. The existing concrete encasement is chipped back to expose the steel section, and existing ties are cut as required with typical dimensions of 3 inches and 10 inches plus or minus 2 inches. The existing steel beam must remain undamaged during demolition. All existing concrete must be completely removed, and the bare steel cleaned with a wire brush to remove all laitance.
