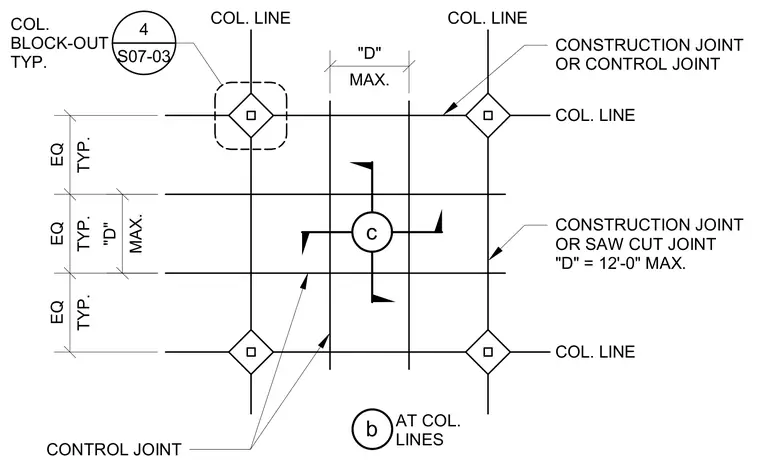

Slab joint layout plan detailing maximum distances between construction joints, control joints, or saw-cut joints around column lines. Maximum dimension "D" equals twelve feet between joints with typical equal spacing configurations. Column block-outs are specified at column lines as typical conditions.
COL. LINE COL. LINE COL. LINE COL. LINE TYP. EQ TYP. EQ TYP. EQ MAX. "D" CONTROL JOINT MAX. "D" CONSTRUCTION JOINT OR SAW CUT JOINT "D" = 12'-0" MAX. CONSTRUCTION JOINT OR CONTROL JOINT COL. BLOCK-OUT TYP. b AT COL. LINES c S07-03 4
