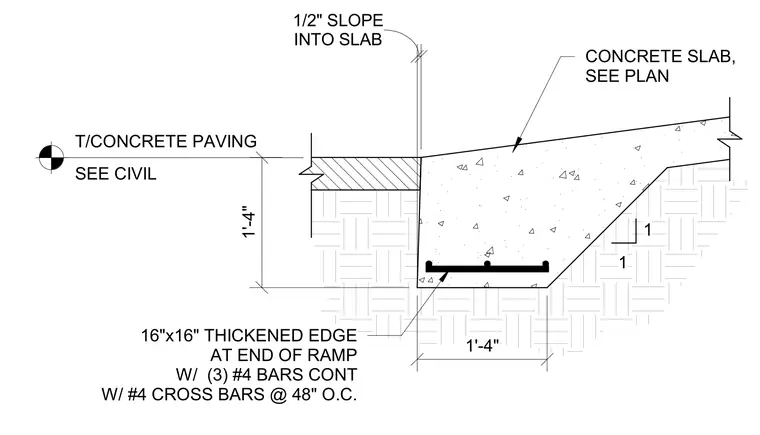

The assembly consists of a sixteen-inch by sixteen-inch thickened concrete slab edge located at the end of a ramp. The thickened edge is reinforced with three continuous number four reinforcing bars and number four cross bars spaced at forty-eight inches on center. The ramp slab transitions into the adjacent concrete paving with a one-half inch slope into the slab. The top of the concrete paving elevation is referenced to civil drawings.
Text on the drawing
CONCRETE SLAB, SEE PLAN 1'-4" 16"x16" THICKENED EDGE AT END OF RAMP W/ (3) #4 BARS CONT W/ #4 CROSS BARS @ 48" O.C. T/CONCRETE PAVING SEE CIVIL 1 1 INTO SLAB 1/2" SLOPE 1'-4" SCALE: 1/2" = 1'-0" S202 4 INTERIOR TILT PANEL
