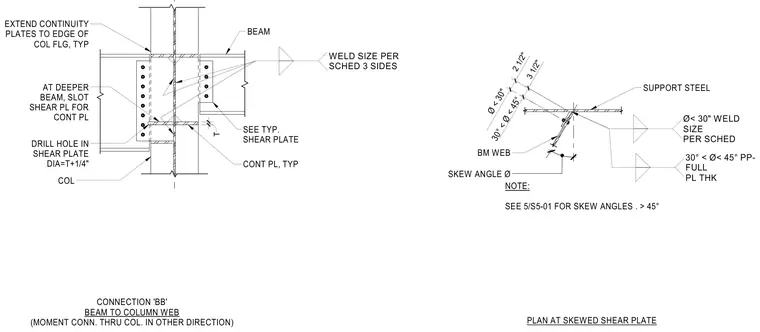

A structural steel connection detail features a beam framing into a column web with continuous plates extending to the edges of the column flange. A typical shear plate connects the beam web, slotted to accommodate the continuity plate thickness where required. A drilled hole in the shear plate provides a diameter equal to the plate thickness plus one-quarter inch at deeper beams. A supplementary plan view details skewed beam web configurations with varying skew angles and corresponding weld requirements.
BEAM SEE TYP. SHEAR PLATE CONT PL, TYP COL DRILL HOLE IN SHEAR PLATE DIA=T+1/4" AT DEEPER BEAM, SLOT SHEAR PL FOR CONT PL EXTEND CONTINUITY PLATES TO EDGE OF COL FLG, TYP T CONNECTION 'BB' BEAM TO COLUMN WEB (MOMENT CONN. THRU COL. IN OTHER DIRECTION) BM WEB SKEW ANGLE Ø SUPPORT STEEL 2 1/2" 3 1/2" 30° < Ø < 45° Ø < 30" NOTE: SEE 5/S5-01 FOR SKEW ANGLES . > 45° PLAN AT SKEWED SHEAR PLATE WELD SIZE PER SCHED 3 SIDES Ø< 30" WELD SIZE PER SCHED 30° < Ø< 45° PP- FULL PL THK .
