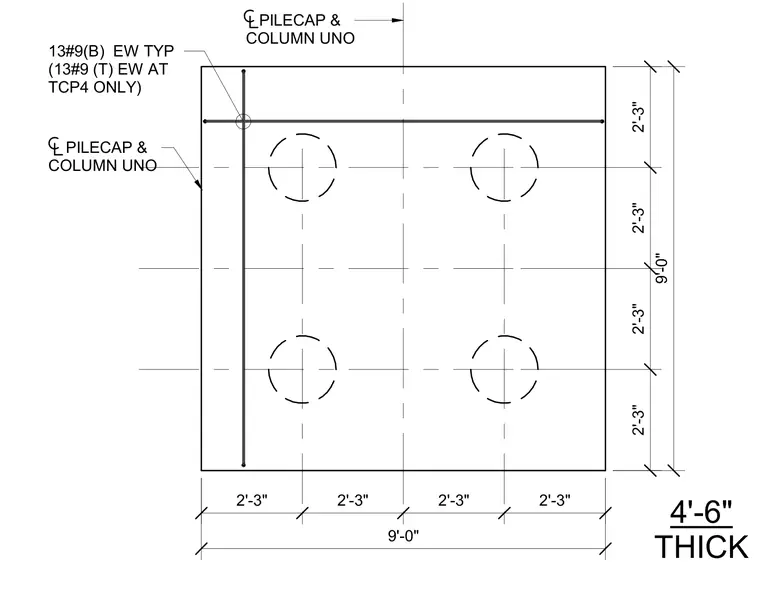

This structural plan detail shows a four-pile concrete pile cap measuring nine feet by nine feet with a thickness of four feet six inches. The bottom reinforcement consists of thirteen number nine bars each way typically, with thirteen number nine bars top each way at pile cap four only. Centerline dimensions of nine feet and two feet three inches locate the piles and column centerlines.
4'-6" THICK PILECAP & COLUMN UNO 13#9(B) EW TYP (13#9 (T) EW AT TCP4 ONLY) PILECAP & COLUMN UNO 2'-3" 2'-3" 2'-3" 2'-3" 9'-0" 2'-3" 2'-3" 2'-3" 2'-3" 9'-0"
