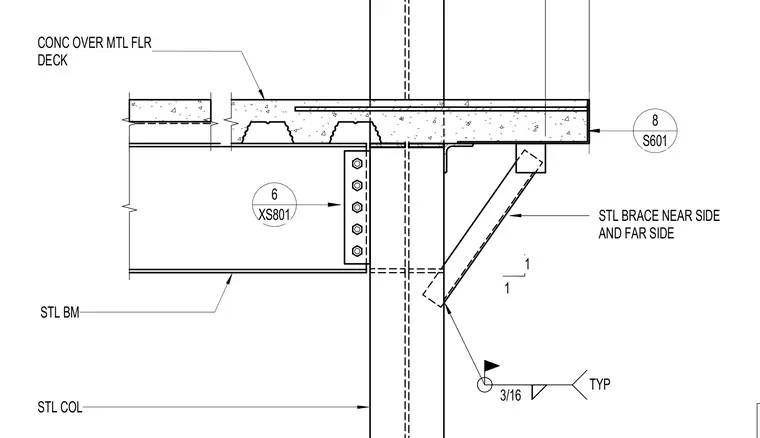

A steel diagonal brace is framed to the underside of a steel beam and against a steel column, with near side and far side brace members connected using three-sixteenths inch typical fillet welds. A concrete over metal floor deck bears across the top flange of the steel beam and abuts the steel column. The steel beam connects to the steel column web via a bolted shear tab connection utilizing a vertical row of six bolts. A bent plate or angle provides additional bearing support beneath the floor deck adjacent to the column.
STL COL STL BM CONC OVER MTL FLR DECK STL BRACE NEAR SIDE AND FAR SIDE 1 1 6 XS801 8 S601 3/16 TYP CONC OVER MTL FLR DECK
