Structural · S-HFNC5

Full Depth Stiffener Plate Connection at Steel Column

Elements

About this detail

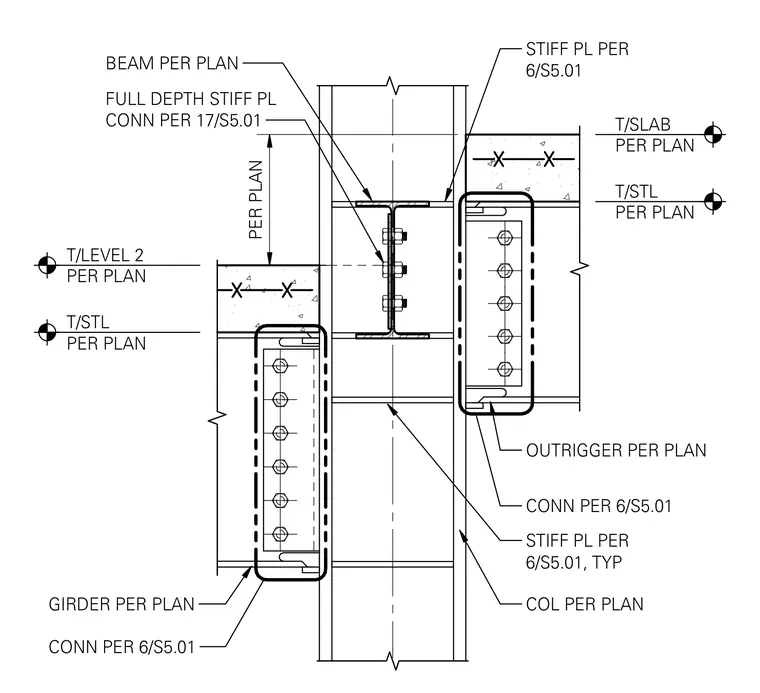

This structural steel connection details a beam and a girder framing into a column per plan, incorporating full depth stiffener plates. Outrigger beams tie into the assembly with connections sized per plan and referenced to specific details. Column, beam, girder, and stiffener plate sizes are determined per plan, with elevation levels indicated for the top of steel and top of slab.
