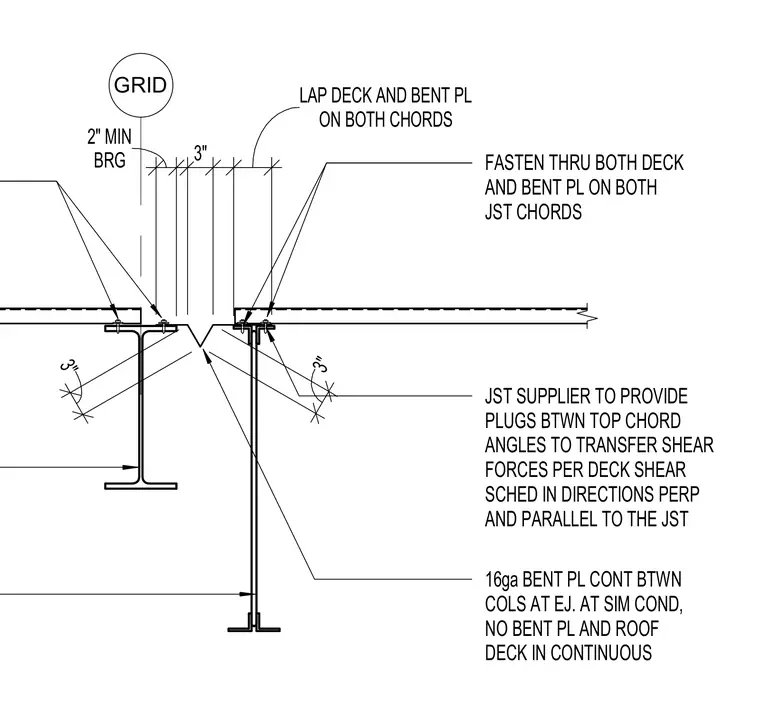

A sixteen gauge continuous bent plate spans between columns at the roof expansion joint, with the roof deck lapped over the bent plate on both joist chords. At similar conditions without an expansion joint, the bent plate is omitted and the roof deck is continuous. The joist supplier provides plugs between the top chord angles to transfer shear forces per the deck shear schedule in directions perpendicular and parallel to the joist grid. Fasteners extend through both the roof deck and the bent plate on both joist chords, maintaining a two inch minimum bearing with three inch dimensions on both chords.
16ga BENT PL CONT BTWN COLS AT EJ. AT SIM COND, NO BENT PL AND ROOF DECK IN CONTINUOUS JST SUPPLIER TO PROVIDE PLUGS BTWN TOP CHORD ANGLES TO TRANSFER SHEAR FORCES PER DECK SHEAR SCHED IN DIRECTIONS PERP AND PARALLEL TO THE JST GRID FASTEN THRU BOTH DECK AND BENT PL ON BOTH JST CHORDS BRG 2" MIN 3" 3" 3" ON BOTH CHORDS LAP DECK AND BENT PL
