An existing concrete-encased steel beam supports a concrete slab on steel deck at levels two through four. The steel deck bears adjacent to an existing concrete pan joist structure. Notes direct the builder to refer to the typical deck support at existing framing detail for additional information.

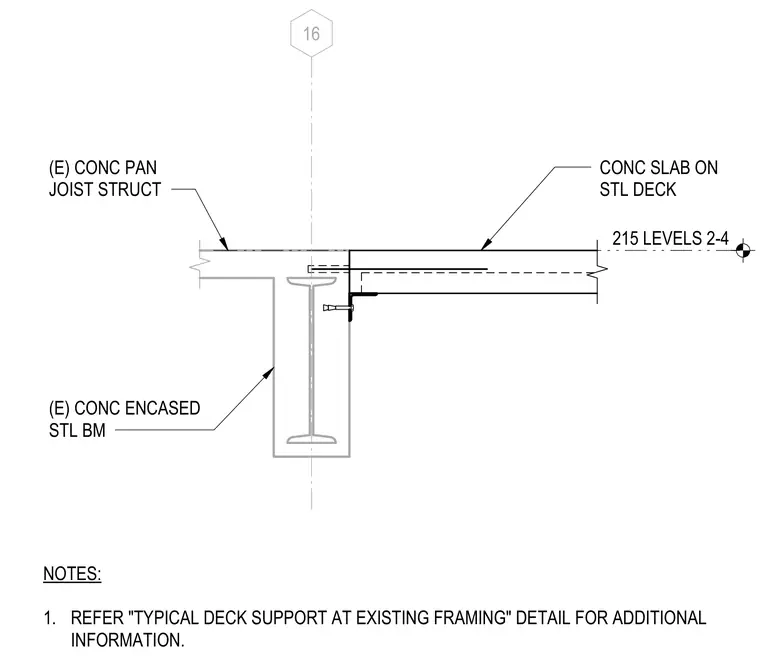

16 215 LEVELS 2-4 CONC SLAB ON STL DECK (E) CONC PAN JOIST STRUCT (E) CONC ENCASED STL BM NOTES: 1. REFER "TYPICAL DECK SUPPORT AT EXISTING FRAMING" DETAIL FOR ADDITIONAL INFORMATION.
