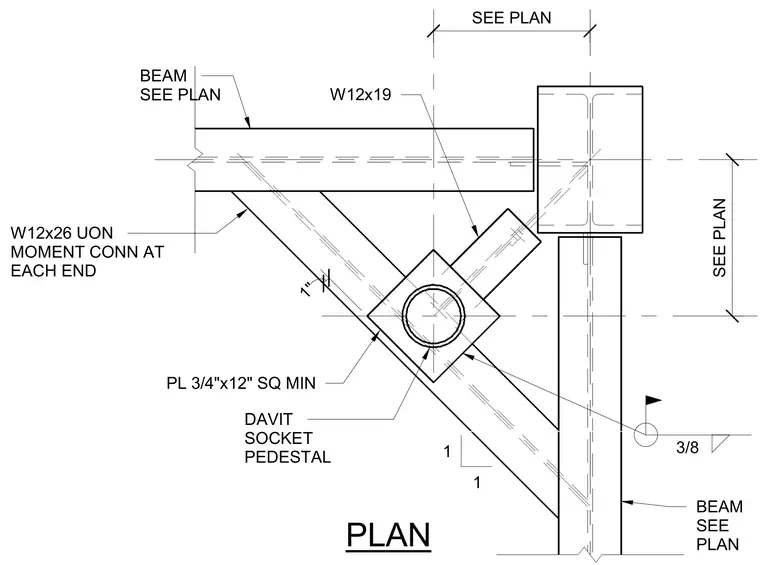

A davit socket pedestal is mounted on a three-quarter-inch by twelve-inch square minimum plate supported by diagonal and orthogonal steel framing members at a corner column. A W12x19 beam frames into the davit socket pedestal support, while a W12x26 member with a moment connection at each end runs diagonally across the assembly. Additional beams are sized per plan and connect to the corner column with standard framing. A three-eighths-inch fillet weld secures the steel connections.
PLAN W12x26 UON MOMENT CONN AT EACH END PL 3/4"x12" SQ MIN DAVIT SOCKET PEDESTAL 1 1 BEAM SEE PLAN W12x19 BEAM SEE PLAN SEE PLAN 1" 3/8 SEE PLAN
