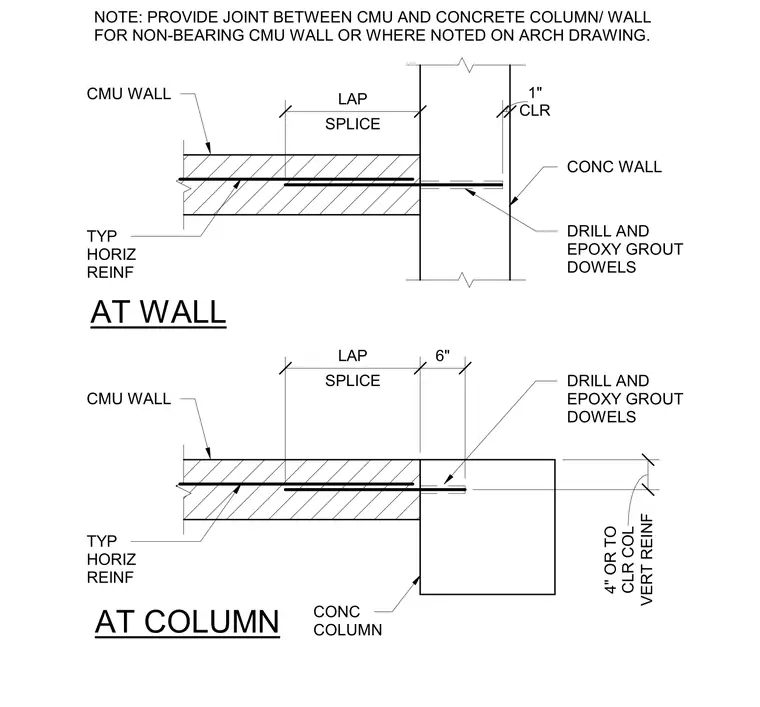

A concrete masonry unit wall connects to a concrete wall or column using drilled and epoxy-grouted dowels anchored into the concrete element. Typical horizontal reinforcement within the masonry wall extends into a splice lap meeting the dowels. A joint is provided between the masonry wall and the concrete support for non-bearing conditions or as noted on architectural drawings.
AT WALL AT COLUMN DRILL AND EPOXY GROUT DOWELS CONC WALL CMU WALL NOTE: PROVIDE JOINT BETWEEN CMU AND CONCRETE COLUMN/ WALL FOR NON-BEARING CMU WALL OR WHERE NOTED ON ARCH DRAWING. CONC COLUMN TYP HORIZ REINF CLR 1" DRILL AND EPOXY GROUT DOWELS SPLICE LAP 6" VERT REINF 4" OR TO CLR COL CMU WALL TYP HORIZ REINF SPLICE LAP
