Structural · S-HF7XV

Composite Steel Deck and Concrete Slab Edge Details

Materials

Elements

About this detail

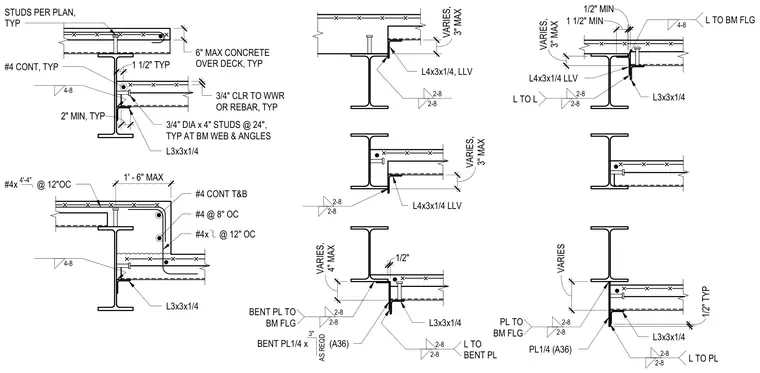

Multiple conditions for composite steel deck and concrete slab edges are supported by wide flange steel beams. The assembly incorporates a concrete slab of up to 6 inches over deck with welded wire reinforcement or reinforcing bars maintaining a 3/4-inch clear cover. Shear studs measuring 3/4 inch in diameter by 4 inches long are spaced at 24 inches on center typically at beam webs and angles. Edge conditions feature various configurations of structural angles such as L4x3x1/4 and L3x3x1/4, along with A36 bent plates welded to beam flanges with specified fillet welds. Reinforcing includes continuous number 4 bars top and bottom, number 4 bars at 8 inches on center, and transverse number 4 bars at 12 inches on center.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
