Cedar slats per arch are secured using a one-quarter-inch by eight-and-one-half-inch by three-inch by zero-foot-four-inch bent plate. The assembly is fastened with two one-quarter-inch diameter through-bolts connecting the cedar slats to the plate, and two one-quarter-inch diameter through-bolts connecting the plate to the steel beam located beyond.

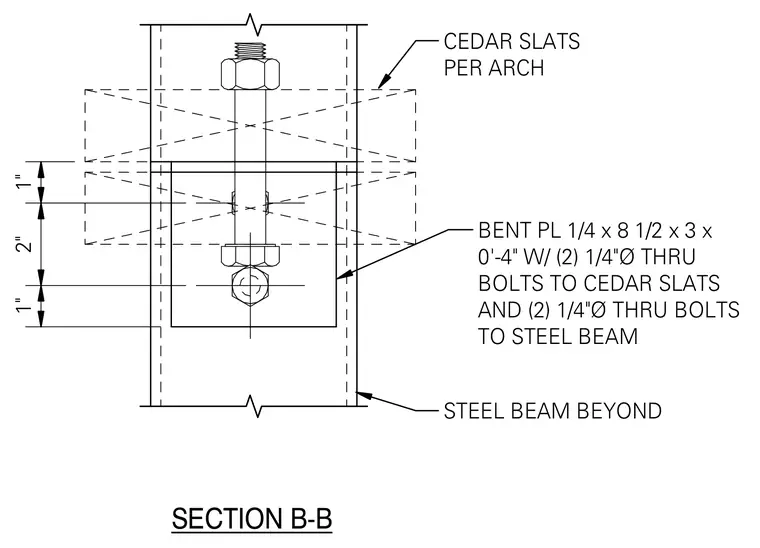

SECTION B-B 1" 2" 1" CEDAR SLATS PER ARCH BENT PL 1/4 x 8 1/2 x 3 x 0'-4" W/ (2) 1/4"Ø THRU BOLTS TO CEDAR SLATS AND (2) 1/4"Ø THRU BOLTS TO STEEL BEAM STEEL BEAM BEYOND
