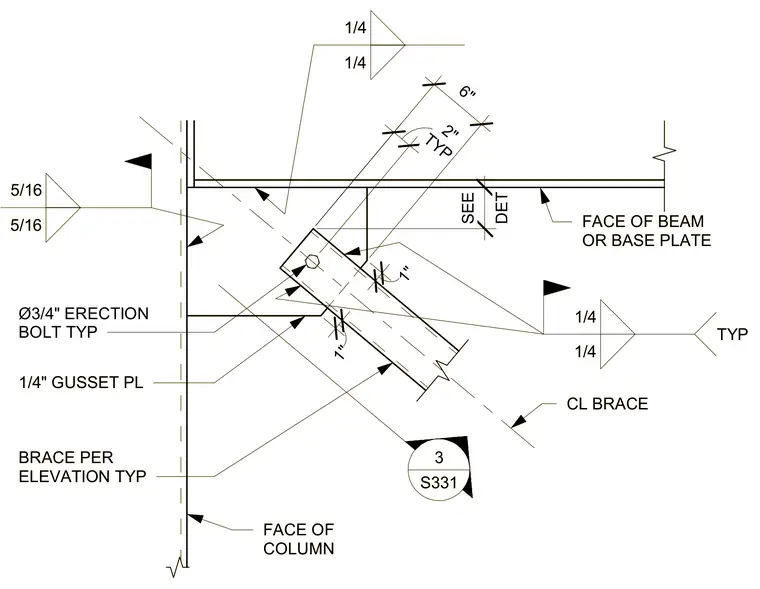

A structural steel bracing connection utilizes a one-quarter-inch-thick gusset plate welded to the face of a beam or base plate and the face of a column. The diagonal brace aligns with the center line of the brace per the elevation and connects to the gusset plate using a three-quarter-inch-diameter typical erection bolt. Fillet welds of one-quarter-inch and five-sixteenth-inch sizes secure the plate assemblies to the structural members as indicated by standard welding symbols.
TYP 2" 1/4" GUSSET PL 1/4 1/4 FACE OF BEAM OR BASE PLATE FACE OF COLUMN 3 S331 CL BRACE BRACE PER ELEVATION TYP 1/4 1/4 TYP Ø3/4" ERECTION BOLT TYP DET SEE 5/16 5/16 1" 1" 6" TYP 2" 1/4" GUSSET PL 1/4 1/4 FACE OF BEAM OR BASE PLATE FACE OF COLUMN 3 S331 CL BRACE BRACE PER ELEVATION TYP 1/4 1/4 TYP Ø3/4" ERECTION BOLT TYP DET SEE 5/16 5/16 1" 1" 6"
